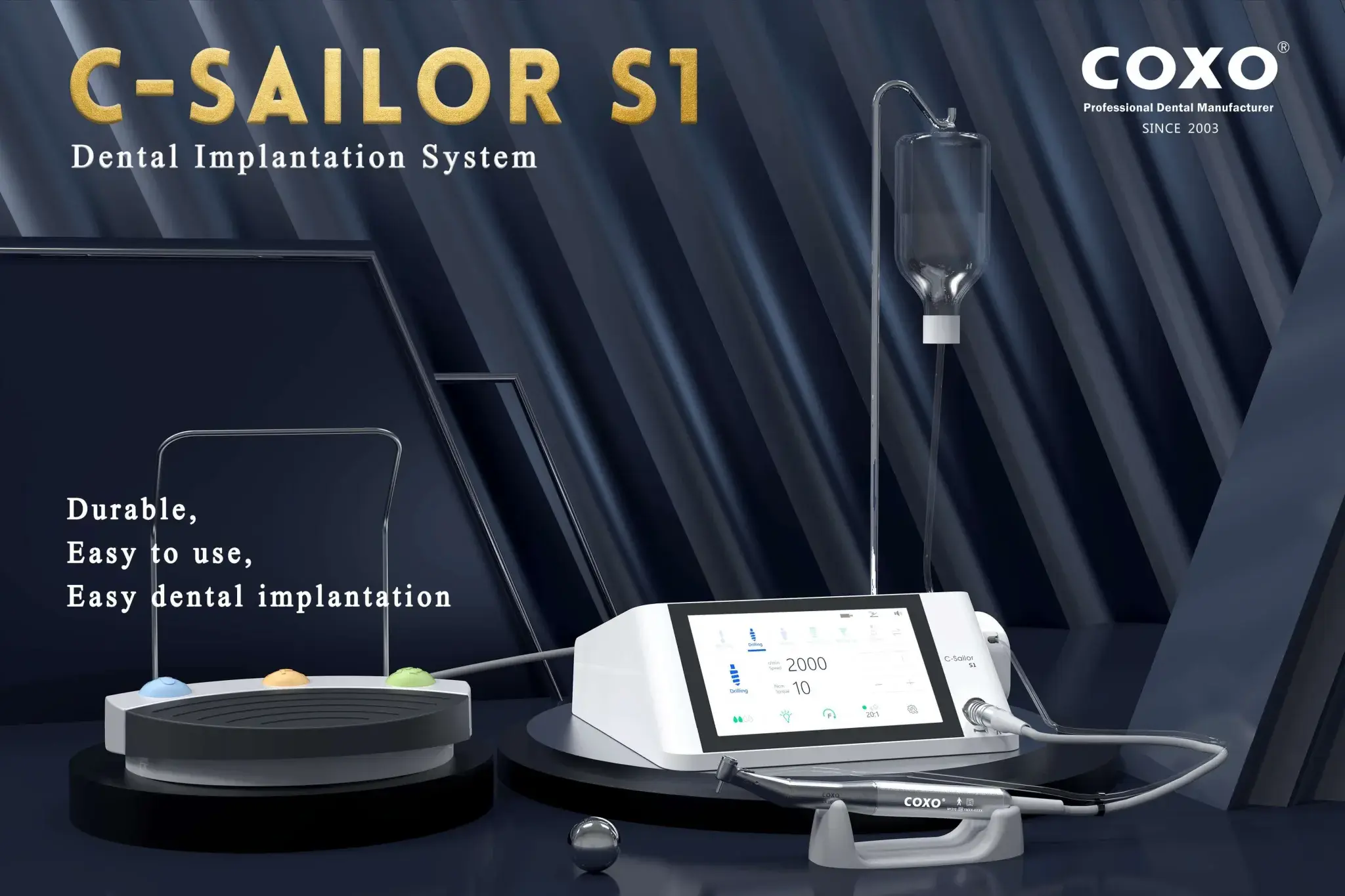

C-SAILOR S1 Dental implantation systems

Power Supply
Input Power: 120 VA
Power Supply: AC 110V 60Hz / 230V 50Hz

Water Output: 4 adjustable levels

Main Unit
Operating Mode: Non-continuous operation
Input Voltage: 220V~ 50Hz / 110V~ 60Hz
Input Power: 120 VA
Dimensions: 248 × 232 × 100 mm (without external pump), 283 × 232 × 100 mm (with external pump)

Motor
Speed Range: 300 r/min to 40,000 r/min
Maximum Torque: 70 N·cm (20:1 contra-angle output)
Input Voltage: 30 V

Lighting Unit (LED)
Maximum Illuminance: ≥7,000 Lux (contra-angle)
Color Temperature: 6,000 K
Rated Voltage: DC 3.3 V
Voltage Range: DC 2.8 - 3.6 V
Maximum Current: 100 mA

Dimensions & Weight
Main Unit Weight: 2,914 g
Package Dimensions: 353 × 351 × 245 mm

Compatible Accessories

Compatible with:
20:1 surgical contra-angle
LED implant handpiece
External irrigation tubing
Multifunction foot pedal
Standard implant burs (2.35mm)
COXO surgical micromotor system

CLINICAL WORKFLOW
Suggested Clinical Workflow
Pre-operative Setup
Implant Surgery Workflow
Step 1 — Marking / Initial Pilot Drill
Step 2 — Sequential Osteotomy Drilling
Step 3 — Tapping (If Required)
Step 4 — Implant Placement
Step 5 — Healing Abutment / Cover Screw

Oral Surgery Workflow (2-in-1 Surgery Mode)

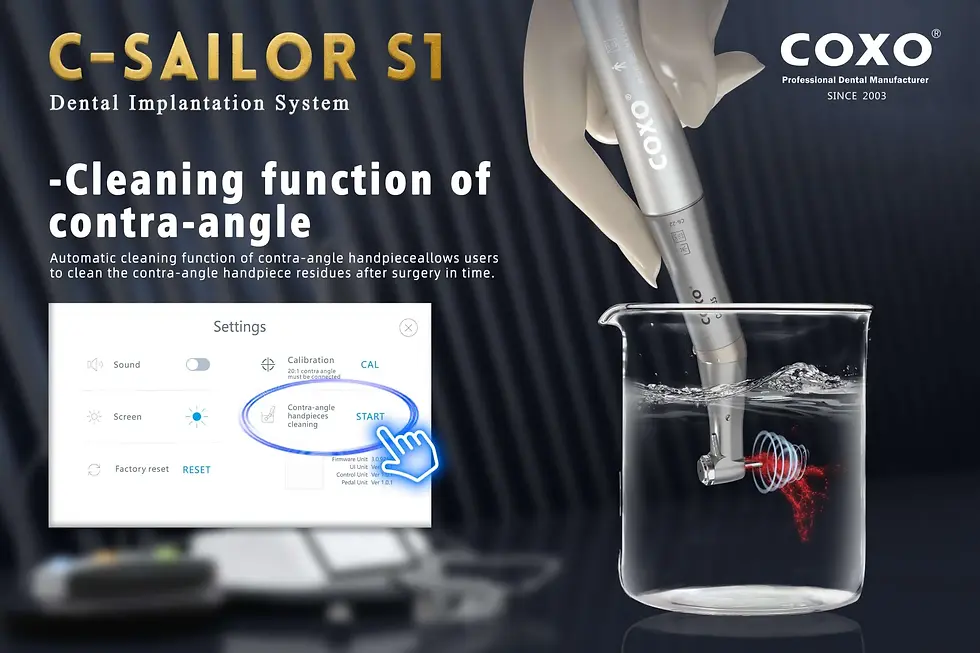

Post-operative Workflow - Automatic Cleaning Program
PRODUCT COMPARISON
Comparison
Type
C-SAILOR S1 brushless motor
COXO old model motor
Asia WP brand motor
Weight(g)
103
150
140 (promotional data)
Noise(dB)
44.48
56.81
55~62
Average Power(W)
0.4085
0.4121
0.3819
